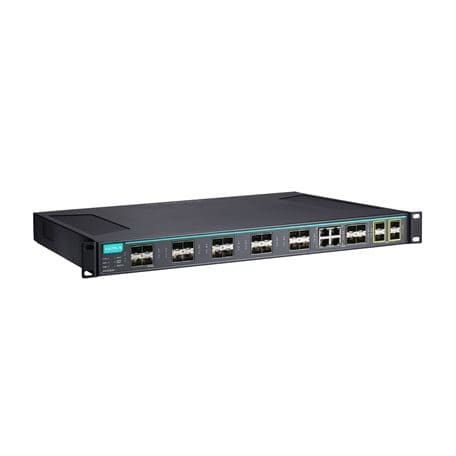

Layer 3 full Gigabit managed Ethernet switch with 20 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 4 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
Available on back-order
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7828A Series is equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.
The ICS-G7828A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Layer 3 switching functionality to move data and information across networks
Command line interface (CLI) for quickly configuring major managed functions
Supports advanced VLAN capability with Q-in-Q tagging
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
Port mirroring for online debugging
Automatic warning by exception through email and relay output
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Access control lists (ACL) increase the flexibility and security of network management
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Digital inputs for integrating sensors and alarms with IP networks
Redundant, dual AC power inputs
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Layer 3 full Gigabit managed Ethernet switch with 20 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 4 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
Layer 3 Full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 4 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
2-port Modbus RTU/ASCII/TCP to MQTT/Azure cloud-ready gateway with Arm® Cortex™-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature
Intelligent Unidirectional Gateway with switch function and MACsec
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature, EtherNet/IP enabled
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature, PROFINET enabled
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -40 to 75°C operating temperature, EtherNet/IP enabled
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature
| NAME | TYPE | VERSION | RELEASE DATE |
|---|---|---|---|
|
7.2 MB |
Manual | v2.5 | Jul 11, 2023 |
|
567.6 KB |
Datasheet | v1.8 | May 17, 2023 |
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7828A Series is equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.
The ICS-G7828A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Layer 3 switching functionality to move data and information across networks
Command line interface (CLI) for quickly configuring major managed functions
Supports advanced VLAN capability with Q-in-Q tagging
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
Port mirroring for online debugging
Automatic warning by exception through email and relay output
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Access control lists (ACL) increase the flexibility and security of network management
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Digital inputs for integrating sensors and alarms with IP networks
Redundant, dual AC power inputs
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Layer 3 full Gigabit managed Ethernet switch with 20 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 4 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
Layer 3 Full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 4 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature
2-port Modbus RTU/ASCII/TCP to MQTT/Azure cloud-ready gateway with Arm® Cortex™-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature
Intelligent Unidirectional Gateway with switch function and MACsec
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature, EtherNet/IP enabled
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -10 to 60°C operating temperature, PROFINET enabled
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -10 to 60°C operating temperature
Entry-level managed Ethernet switch with 8 10/100BaseT(X) ports, -40 to 75°C operating temperature, EtherNet/IP enabled
Entry-level managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature
| Weight | 6.4700 kg |
|---|---|
| 100/1000BaseSFP Ports | |
| Management | |
| Filter | 802.1Q BPDU Filter BPDU Guard GMRP GVRP IGMP v1/v2/v3 QinQ VLAN |
| Multicast Routing | |
| DRAM | |
| Flash | |
| Storage Port | |
| Console Port | |
| Alarm Contact Channels | |
| Digital Inputs | +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA |
| Input Voltage | |
| Operating Voltage | |
| Overload Current Protection | |
| Reverse Polarity Protection | |
| Input Current | |
| MIB | |
| IP Rating | |
| Dimensions | |
| Weight | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Safety | |
| Time | |
| Standards | |
| Warranty Period | |
| Details |
