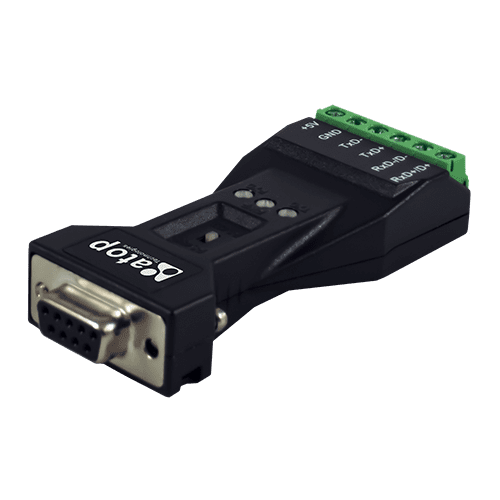

The SS100/SS100SiS media converters provide complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. It is a fast and efficient solution to overcome distance limitations of RS232 or for connecting to industrial devices with an RS422/RS485 interface. The converters support both half-duplex 2-wire RS-485 and full-duplex 4-wire RS-422/485, and you could select mode via DIP switch without extra software required. Automatic data direction control is provided for RS-485. In this case, the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal.
Port Power over RS232
The RS-232 port of the SS100/SS100SiS is a DB9 female socket that can connect directly to the host PC, using the RTS/DTR lines to receive the power needed to run. Regardless of whether the signal is high, the can obtain enough power from the data line. SS100-SiS, the version with isolation, still requires an external power supply. When there are many devices connected to RS422 or RS485 signal lines, we recommend that external power supply is necessary.
LED Port Power Indicator
It is easy to let the SS100 test the device for you. Simply connect the SS100 to the device’s RS-232 port and set the RS485 Echo mode. If the power port LED indicator of PWR/Tx/RX lights up, then SS100 is receiving enough power and data communication is working properly.
Device-mountable RS-232 to RS-485/422 converter, Terminal block
Device-mountable RS-232 to RS-485/422 converter, DC-jack
Device-mountable RS-232 to RS-485/422 converter, Terminal block, 3kV isol. on RS-232
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Moxa is a leading provider of edge connectivity, industrial computing, and network infrastructure solutions for enabling connectivity for the Industrial Internet of Things (IIoT). With over 35 years of experience, they help industrial enterprises overcome roadblocks and achieve operational resilience through purpose-built OT networking and cybersecurity. They are dedicated to changing the world through the power of connectivity, driving industrial transformation.
Acksys’s expertise and high-quality standards enable their products to meet the most demanding requirements of our key markets: transport (rail, road), industry (M2M, IIoT, automation), mining, oil & gas and port areas. They specialise in WiFi and Cellular Communication Solutions, which have been designed for the industry for over 40 years.
ATOP aims to facilitate connections that drive the world in which we live. In industrial environments, having the right connections is vital: connections between the network, devices, and machines, connections with industry experts and trusted partners.
The Tofino™ Security product line is part of the Belden portfolio of leading industrial networking solutions. Tofino Security offers enhanced cybersecurity for critical industrial automation systems through a simple-to-implement solution.
Phoenix Contact Connect distributes and controls power and data flows – they have been developing the right products for this purpose since 1923. Whether in industrial production facilities, in the field of renewable energies, in infrastructure, or for complex device connections, their solutions are used wherever processes must run automatically. Above and beyond their pure function, they help our partners develop sustainable applications with more efficient processes and reduced costs.
Phoenix Contact: We are paving the way to a climate-neutral and sustainable world with innovative products and solutions.
| Version | Name | Time | Size | Download |
|---|---|---|---|---|
| v0.3 | Datasheet EN | 2023-11-01 | 240.88 KB | Download |
| Version | Name | Time | Size | Download |
|---|---|---|---|---|
| v1.2 | SS100 Hardware Installation Guide | 2020-07-21 | 3.69 MB | Download |
| v1.1 | SS100 Hardware Installation Guide | 2019-11-19 | 3.24 MB | Download |
| Version | Name | Time | Size | Download |
|---|---|---|---|---|
| SS100 Declarations of Conformity | 2023-03-09 | 285.98 KB | Download |
